Indoor Regular Series LED Display

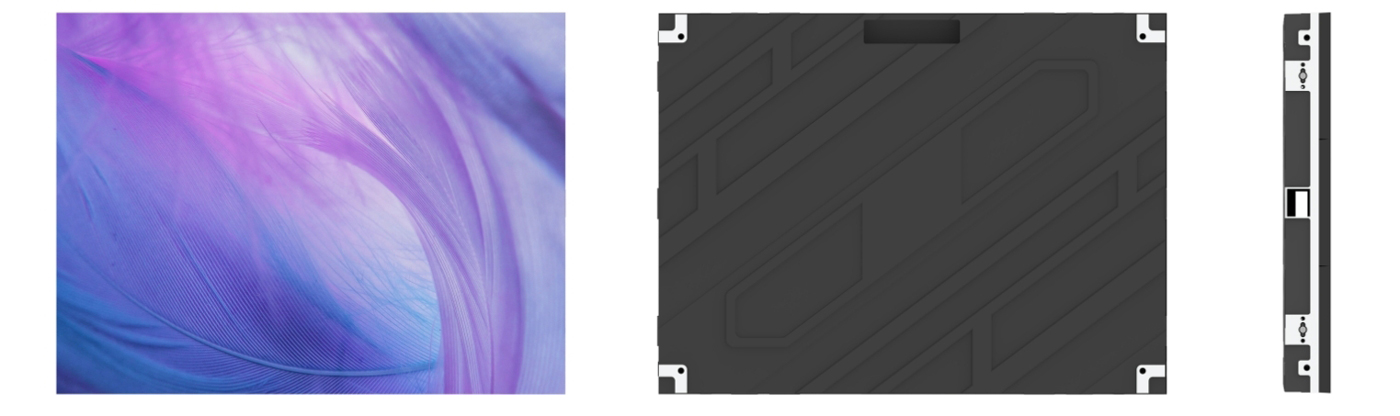

Product Illustration
Product Features
(1)Die-cast aluminium case with high flatness and pure front maintenance
(2)High refresh rate, high gray scale
(3)Full black light, high contrast
(4) No fan, silent
(5) Seamless splicing, fast installation
(6) Module size 320mm*160mm
Detailed Parameters
|
Unit Parameters |
Model Number |
AY1.53 |
AY1.86 |
AY2.0 |
AY2.5 |
|
Pixel Pitch |
1.53mm |
1.86mm |
2mm |
2.5mm |
|
|
Pixel Configuration |
1R1G1B |
1R1G1B |
1R1G1B |
1R1G1B |
|
|
LED Type |
SMD |
SMD |
SMD |
SMD |
|
|
Unit Resolution |
416*312 Dots |
344*258 Dots |
320*240 Dots |
256*192 Dots |
|
|
Pixel Density |
422500 pixels/㎡ |
288906 pixels/㎡ |
250000 pixels/㎡ |
160000 pixels/㎡ |
|
|
Module Size (W*H) |
320mm *160mm |
320mm *160mm |
320mm *160mm |
320mm *160mm |
|
|
Cabinet Size (W*H*D) |
640mm ×480mm |
640mm ×480mm |
640mm ×480mm |
640mm ×480mm |
|
|
Scan and Drive Mode |
52-sweep constant current drive |
43-sweep constant current drive |
40-sweep constant current drive |
32-sweep constant current drive |
|
|
IP Rating |
IP20 |
IP20 |
IP20 |
IP20 |
|
|
Maintenance Type |
Front Maintenance |
Front Maintenance |
Front Maintenance |
Front Maintenance |
|
|
Optical and Electrical Parameters |
Brightness |
≤600cd/㎡ |
≤600cd/㎡ |
≤600cd/㎡ |
≤600cd/㎡ |
|
Unit Power （Maximum） |
680W/㎡ |
680W/㎡ |
680W/㎡ |
680W/㎡ |
|
|
Unit Power (Typical ) |
270W/㎡ |
270W/㎡ |
270W/㎡ |
270W/㎡ |
|
|
Color Temperature（Adjustable） |
3200K —9300K |
3200K —9300K |
3200K —9300K |
3200K —9300K |
|
|
Viewing Angle |
H：≥170° ； V：≥170 |
H：≥140° ； V：≥120 |
H：≥140° ； V：≥120 |
H：≥140° ； V：≥120 |
|
|
Max Contrast Ratio |
≥5000:1 |
≥5000:1 |
≥5000:1 |
≥3000:1 |
|
|
Brightness Control |
Manual |
Manual |
Manual |
Manual |
|
|
Input Voltage |
AC 90 ～264V |
AC 90 ～264V |
AC 90 ～264V |
AC 90 ～264V |
|
|
Input Power Frequency |
50/60Hz |
50/60Hz |
50/60Hz |
50/60Hz |
|
|
Gray Scale |
16bit |
16bit |
16bit |
16bit |
|
|
Frame Rate |
50/60Hz |
50/60Hz |
50/60Hz |
50/60Hz |
|
|
Refresh Frequency |
3840Hz |
3840Hz |
3840Hz |
3840Hz |
|
|
Usage Parameters |
Lifespan(h) |
≥50000 |
≥50000 |
≥50000 |
≥50000 |
|
Recommended Viewing Distance |
3M |
3M |
4M |
4M |
|
|
Operating Temperature |
-10℃～+40℃ |
-10℃～+40℃ |
-10℃～+40℃ |
-10℃～+40℃ |
|
|
Storage Temperature |
-20℃～+60℃ |
-20℃～+60℃ |
-20℃～+60℃ |
-20℃～+60℃ |
|
|
Communication Connection |
CAT5 cable transmission( L≤100m )； Single mode fiber( L≤15km ) |
||||
|
Statement: Power is for reference only, the specific to the actual prevail, specifications are subject to change without notice. |
|||||
Product Topology Diagram
Dimensions of the Finished Cabinet
Precautions
Before using this product, please read and understand the following precautions carefully, and keep them properly for future inquiries!
(1)Before operating the LED TV, please read the manual carefully, and abide by the regulations on safety precautions and related instructions.
(2)Guarantee that you can understand and comply with all safety guidelines, tips and warnings and operating instructions, etc.
(3)For product installation, please refer to the "Display Installation Manual".
(4)When unpacking the product, please refer to the packaging and transportation diagram; take out the product; please handle it with care and pay attention to safety!
(5)The product is a strong current input, please pay attention to safety when using it!
(6)The ground wire should be safely connected to the ground with reliable contact, and the ground wire and zero wire should be isolated and reliable, and the access to the power supply should be far away from the high-power electrical equipment. (7)Frequent power switch tripping, should be timely check and replace the power switch.
(8)This product cannot be turned off for a long time. It is recommended to use it once every half a month and power it on for 4 hours; in a high humidity environment, it is recommended to use it once a week and power it on for 4 hours.
(9)If the screen has not been used for more than 7 days, the preheating method should be used every time. The screen is lit: 30%-50% brightness is preheated for more than 4 hours, then adjusted to normal brightness 80%-100% to light up the screen body, and the moisture will be excluded, so that no abnormalities in use.
(10)Avoid turning on the LED TV in full white state, because the inrush current of the system is the largest at this time.
(11)Dust on the surface of the LED display unit can be gently wiped with a soft brush.
